Code Template: Create File View Code

Previous Top Next

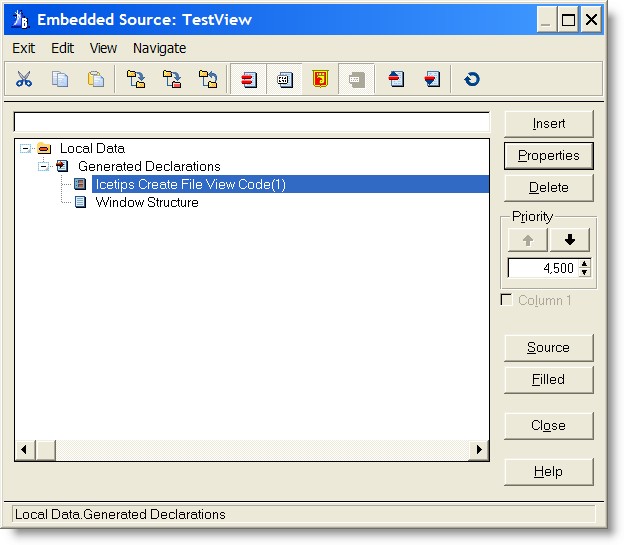

This template constructs a Clarion VIEW structure in the selected embed. Normally you would use this in one of the "Local Data" embed points as shown in the screenshot below:

Template_ITCreateFileViewCodeEmbed

Template_ITCreateFileViewCode

View label

This is the label of the view as it is created in the embed.

Field list

This is a list of the fields being added to the view. The list above results in a view declared as follows:

ITView2              VIEW(Products)
                      PROJECT(PRO:ProductNumber)
                      PROJECT(PRO:Description)
                      PROJECT(PRO:Price)
                    END

Template_ITCreateFileViewCode_Properties

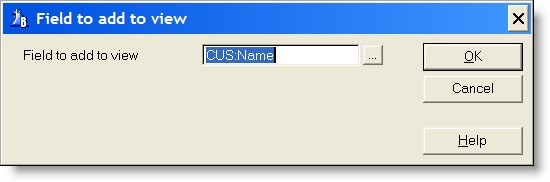

Field to add to view

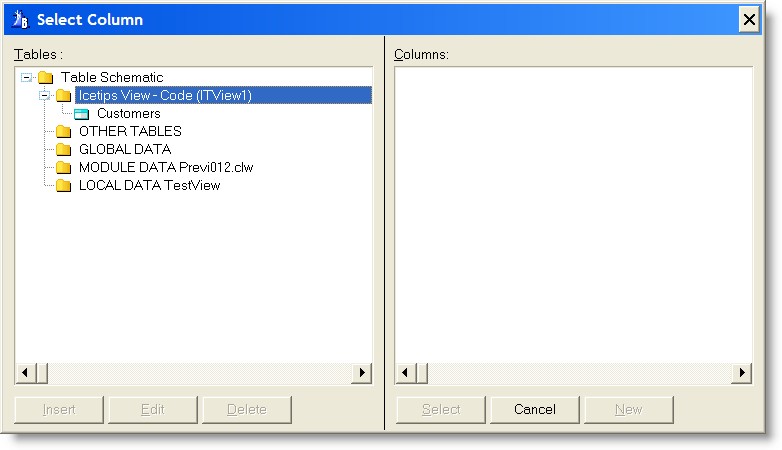

Select the field to add by clicking on the [...] button on the right. This will bring up the default "Select Column" window where you can select the field.

Template_ITCreateFileViewCode_SelectFile
