Open the template settings:

Do-it Right-click the taskpanel

Do-it Select "Actions"





Task panel

Insert

Add new header. This will open the Header Settings



Properties

Change the properties for the selected header.

This will open the Header Settings



Delete

Delete header

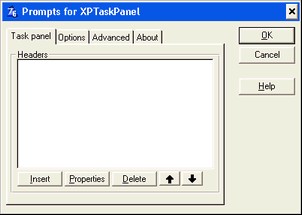

Tpl_Main





Options

Only allow one expanded header

Only one header can be expanded at any time. When a user expands a header, all other headers will become contracted.



Enable Wizard Mode

If the taskpanel is in "Wizard mode" the last clicked task is bolded, to indicate the current step in the wizard.



Disable word wrap

If this option is checked, all tasks will be draw in single-line modus (appending ellipsis (...) at the end of the task title, if it's to long to fit)



Tooltips Mode

Set the mode of tooltips. Disabled, Normal or Balloon.



Customize Colors

Brings up the color settings for this taskpanel



Set margins

Change the margins used when drawing headers and tasks



Font

The font used for this taskpanel

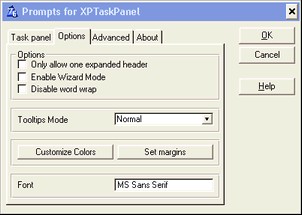

Tpl_Options





Advanced

Object Name

This is the object name used when generating code.



Object Class

The class to derive when generating code



Init code priority

Set the init-code priority. This can be set to 9001 if you want the taskpanel to be initialized at the end of the %WindowManagerMethodCodeSection.



If you are using 0-Hazzle, then you must set init-code priority to 9001.

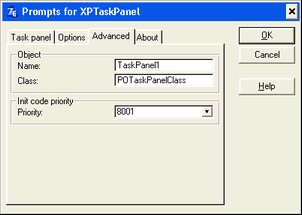

Tpl_Advanced
