Header Settings |

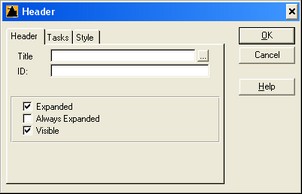

Header settings
Title This is the text that will be shown onscreen. If you would likt to use a variable, just prefix the variable name with '!' (without the quotes)
ID Each header need a unique identifier. This ID will be used by the template when generating embed-points. If you change the ID after inserting embedded code, this will become orphaned. A LONG-variable in the class will be generated. This LONG will be automatically set runtime, and can be used for calls to class-methods.
Expanded Sets if this header is initially expanded upon window open
Always Expanded The header will not be possible to contract (and the contract/expand button will be hidden).
Visible Is this header initially visible upon window open
|

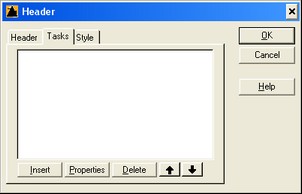

Tasks
Insert Add a new task to this header. This will open Task Settings.
Properties Change the properties of the selected task. This will open Task Settings.
Delete Delete the selected task
|

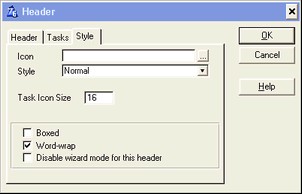

Style
Icon Name of the icon. You can use a variable by prefixing the variablename with '!' (wihtout the quotes)
Style Normal - Standard blue header Highlightet - White header
Task Icon Size The icon size of the tasks under this header. The height of each task is based on the icon size, however no task be less than 20 pixels (even though task icons is 16x16.
Boxed When a header is boxed, it will be drawn as a single line. This gives you a box with task in it.
Word-wrap Uncheck this option to disable wordwrapping for this header.
Disable wizard mode for this header This header will not be included in the wizard mode, and tasks will be drawn as usual. |
