Quickstart

Follow the steps below to quicly implement a Taskpanel in your application:

Add the global template

Open your application (or create a new one)

Press the "Global"-options button ()

Click the "Extensions"-button

Click the "Insert"-button

Choose the "XPTaskpanelGlobal - Icetips XP Taskpanel Global"-template

Press "Ok" two times to get back to the application

In the Application frame properties check the "Immediate" option.

Populate the control

Create a Window

Populate "XPTaskPanel" control template by clicking the

Choose the "XPTaskPanel - Icetips XP Taskpanel Control"-template

       Legacy-NOTE: Select XPTaskPanelCW instead..

Place the control somewhere on you window and adjust the size.

Add 2 global variables (you can do that in the dictionary if you want to)  Here we are using:

MainThreadID    LONG

ToolboxMenuID   LONG

In the Appframe procedure, add this code in OpenWindow event handling embed, after generated code:

MainThreadID = THREAD()

START(TaskPanelProcedure, 25000)

In the Sized window event handling embed, after generated code, add:

pix# = 0{PROP:Pixels}

0{PROP:Pixels} = TRUE

h# = 0{PROP:ClientHeight} - 4

NOTIFY(h#, ToolboxMenuID)

0{PROP:Pixels} = pix#

On the Taskpanel procedure add a local variable:

nHeight         UNSIGNED

Then, in ThisWindow.Init method, right at the beginning:

ToolboxMenuID = THREAD()

In ThisWindow.TakeWindowEvent method, priority 2501:

OF EVENT:Notify

   IF NOTIFICATION (nHeight,,)

       pix# = 0{PROP:Pixels}

       0{PROP:Pixels} = TRUE

       0{PROP:Height} = nHeight

       ?XPTaskpanel{PROP:Height} = nHeight

       0{PROP:Pixels} = pix#

       DISPLAY

   END

And finally in the CloseWindow event handling embed, before generated code put:

ToolboxMenuID = 0

That should be all the code you need to get the Taskpanel up and running.

Template settings

Right-click on the XPTaskpanel control and choose "Actions".

Now, press the "Insert"-button to bring up the "Header Editor".

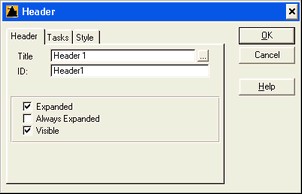

    (Header Settings)

In the "Title"-field, enter "Header 1" (without the quotes)

If you'd like an icon in the header, you can select the "Style"-tab and press the elipsis-button (...) to right of the icon-field, and choose an .ico-file.

Click the "Tasks"-tab

Now, click "Insert" to add a task.

   (Task Settings)

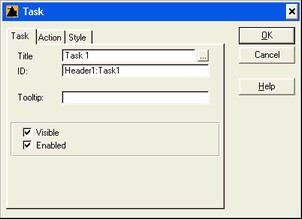

Enter "Task 1" in the "Title"-field

Click "Ok" to add the Task

Click "Insert" to add another task

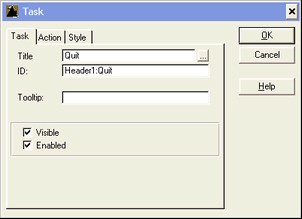

Enter "Quit" in the title-field

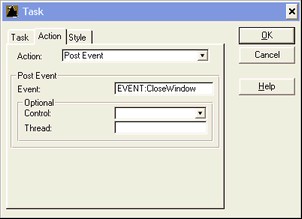

Choose the "Action"-tab

Action: Post Event

Event: EVENT:CloseWindow

Click "Ok" to add the Task

Click "Ok" three times to get back to the window formatter.

Save the window

Now, go to the embed-point "Local Objects - XPTaskpanel1 - Header1 - Header1:Task1 - Task Clicked - Before Generated Code", and

  enter the following code:

       Message('You clicked ' & Self.GetTaskTitle(HeaderID, TaskID))

Save, compile and run your application.

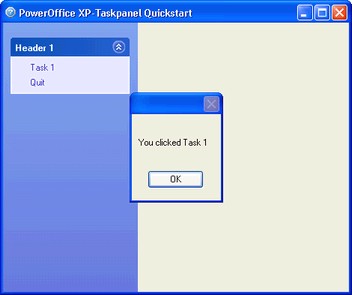

  The result should look something like this:

When you click on "Task 1" a message saying "You clicked Task 1" should appear.

You'll find this application under "Clarion6\3rdParty\Examples\XPTaskpanel\quickstart_c6.app"
